Модуль RD-01

1. Product overview

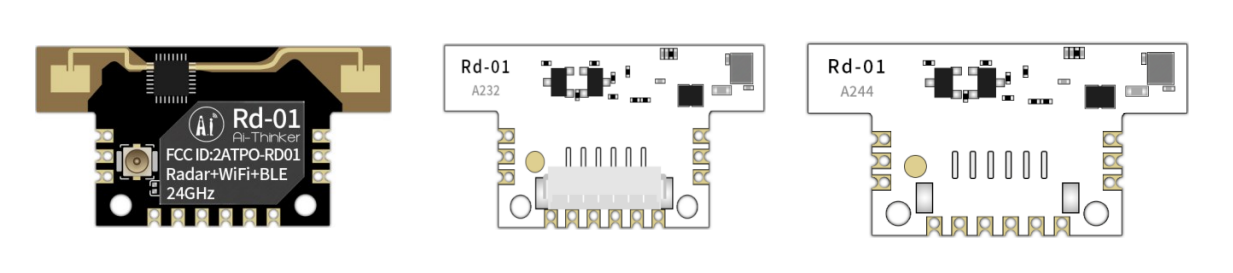

Rd-01 is a radar module developed by Shenzhen Anxinke Technology Co., LTD. The module supports Wi-Fi&BLE.

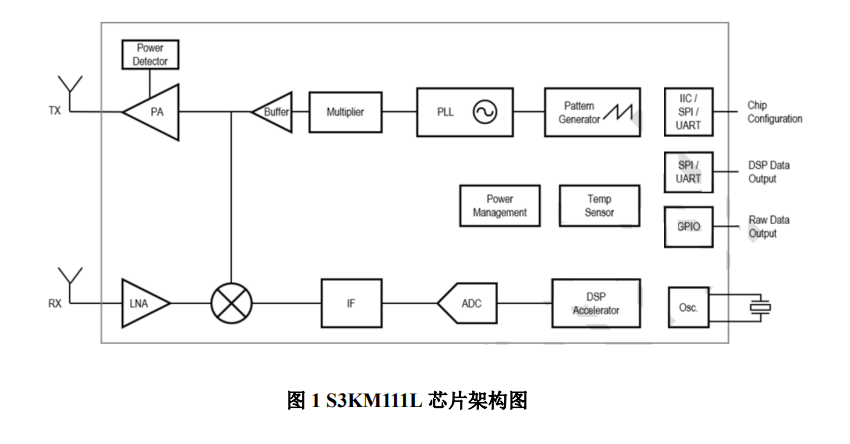

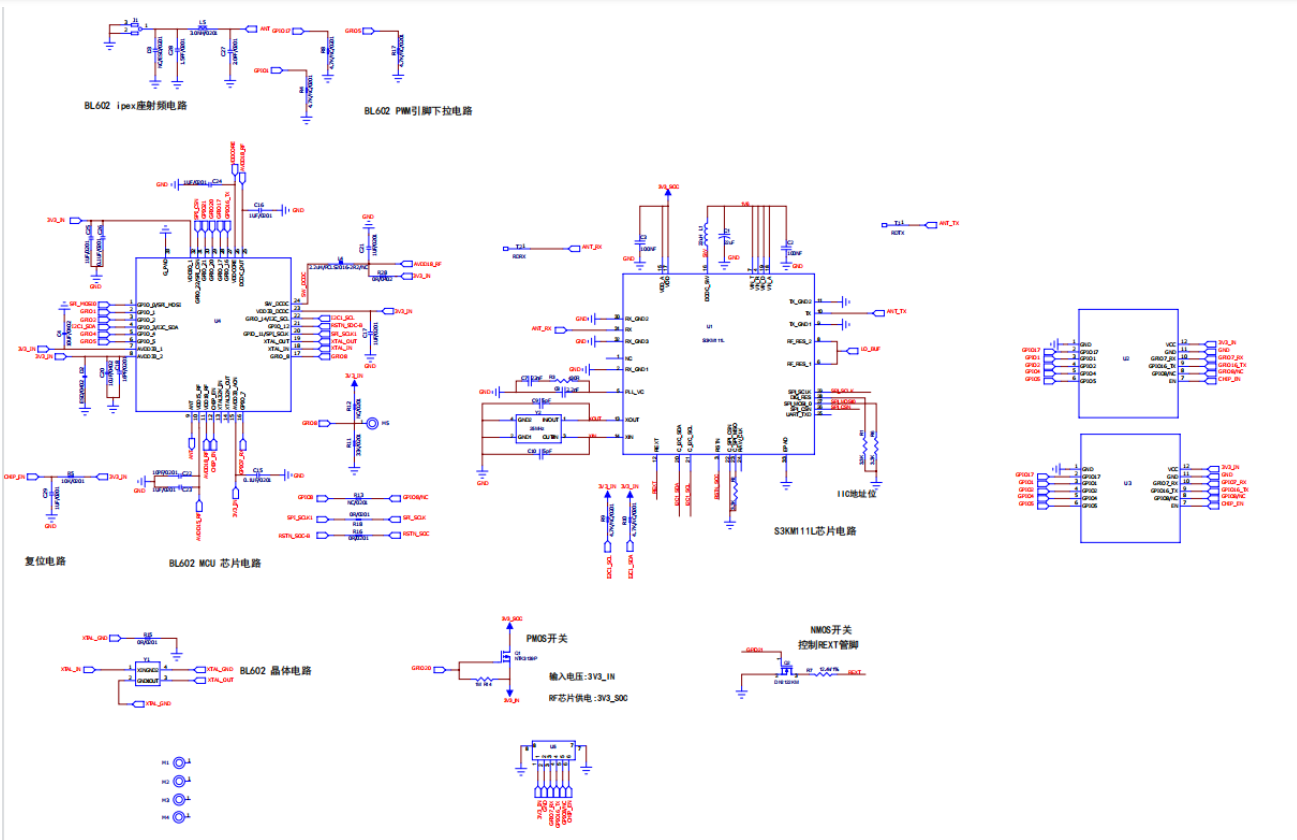

The radar part is equipped with the S3KM111L chip of Sidian Micro. S3KM111L is an integration based on FMCW radar technology

Single chip single wave sensor SoC. Operates in 24 GHz k band with up to 1 GHz modulation bandwidth per frequency. use

FMCW frequency modulated continuous wave to detect the target in the set space. Combined with radar signal processing, accurate human body induction

Algorithm to realize the high sensitivity of human presence state induction, recognition of human body in motion and static state.

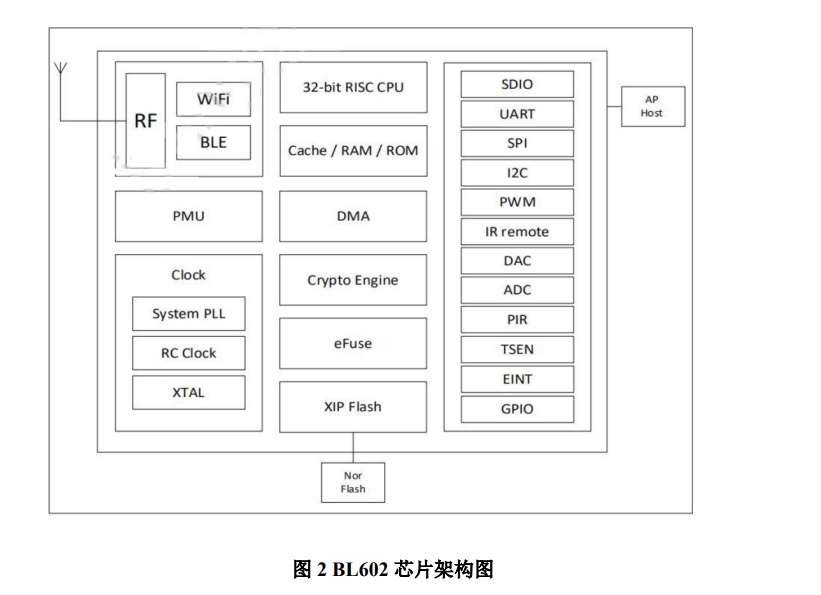

The Wi-Fi&BLE part uses the BL602 chip as the core processor and supports the Wi-Fi 802.11b/g/n protocol and BLE 5.0

Protocol. The BL602 chip is built with a low-power 32-bit RISC CPU, 276KB of RAM and a rich bundle of peripheral interfaces

These include SPI, UART, I2C, PWM, ADC and GPIO.

The Rd-01 module can sense whether there is a moving or twitching human body in the area, and transmits the detection junction in real time through Wi-Fi&BLE

Fruit. Provides visual configuration tools to easily configure sensing range, sensitivity of different intervals, and unmanned

Delay time, etc. It also supports Wi-Fi&BLE wireless configuration of radar parameters, greatly improving the efficiency of construction and operation

Rate, convenient and fast.

1.1. Features

◼ the SMD - 12 encapsulation, interface compatible with standard socket or row needle

◼ radar support 24 GHZ ISM frequency band

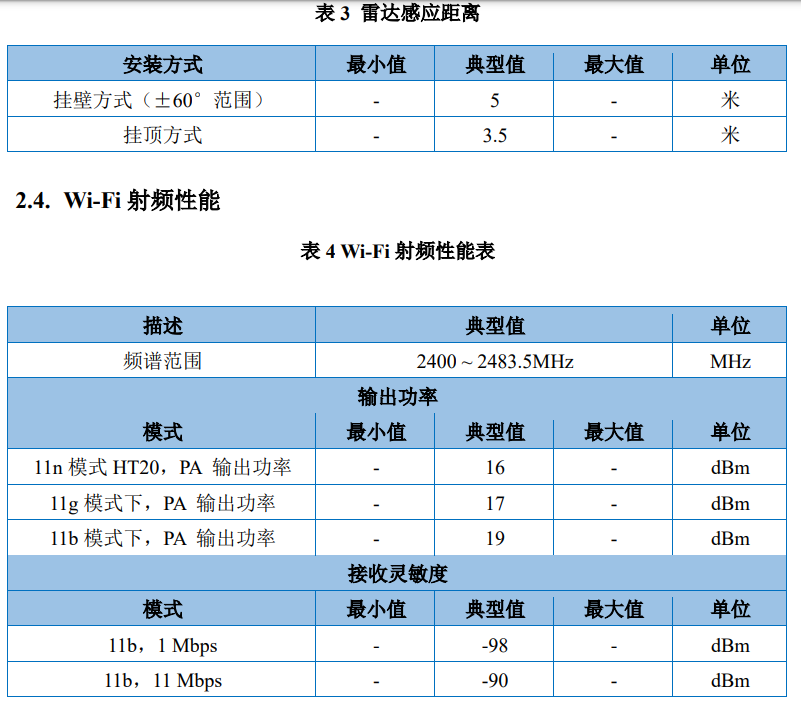

◼ radar sensing range is up to 5 meters

◼ radar Angle is big, range of plus or minus 60 degrees

◼ radar range and accurate recognition, support induction range, shielding range outside interference

◼ can realize via bluetooth intelligent adjustable, convenient and quick

◼ support roof, hang a wall to install a variety of ways

◼ supports IEEE 802.11 b/g/n agreement

◼ wi-fi security support WPS/WEP, WPA/connected Personal/connected Enterprise/WPA3

◼ support 20 MHZ bandwidth, the highest rate of 72.2 Mbps

◼ Bluetooth low energy consumption, 5.0 Bluetooth Mesh

◼ support Station + BLE, SoftAP Station + + BLE

◼ support 32 - bit RISC CPU, 276 KB of RAM

◼ safety, support the use of ECC - 256 signature image

◼ support QSPI/SPI Flash instant AES decryption (OTFAD), support AES 128 CTR mode

◼ support AES 128/192/256 - bit encryption engine

◼ support SHA - 256/1/224

◼ support true random number generator (TRNG)

◼ public key accelerator (PKA), support the basic operation of large Numbers, software provides signature and verify the application program interface, etc

◼ support SPI, UART, I2C, PWM, ADC and GPIO

◼ integrated wi-fi MAC/BB/RF/PA/LNA/BT

◼ supports a variety of sleep mode

◼ supports secondary development, integrated with Windows, Linux development environment

◼ assembly way flexible, compatible patch/needle/socket and so on a variety of ways

◼ typical application scenario

⚫ Human body induction light control

⚫ Human body induction awakening of advertising screen and other devices

⚫ Life safety protection

⚫ Smart home appliances

⚫ Intelligent security



2. Main parameters

The model is Rd-01

Package SMD-12, compatible with patch/pin/socket and other assembly methods

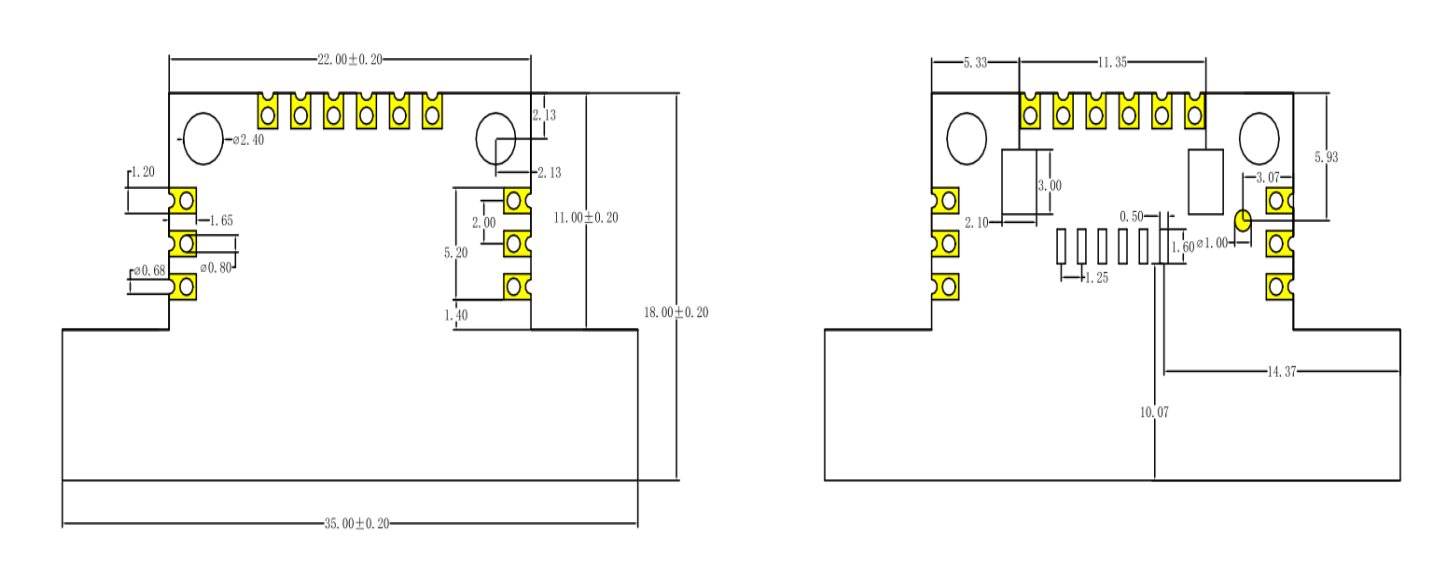

Size 35.0*18.0*3.6(±0.2)mm

Antenna form radar: onboard antenna

Wi-Fi&BLE: IPEX seat son

Spectrum range

Radar: 24G ~24.25GHz

Wi-Fi: 2400 to 2483.5MHz

Operating temperature -40℃ ~ 85℃

Storage environment -40 ° C to 125 ° C,

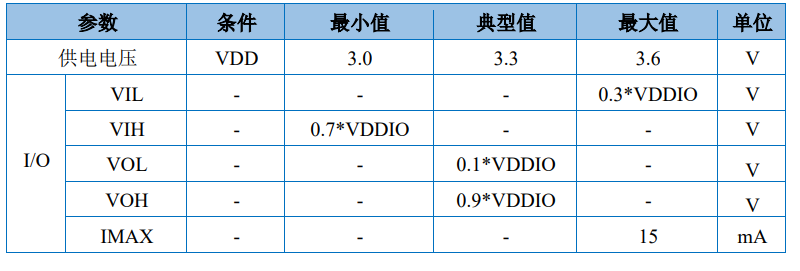

Power supply range The power supply voltage ranges from 3.0V to 3.6V, and the power supply current ≥500mA

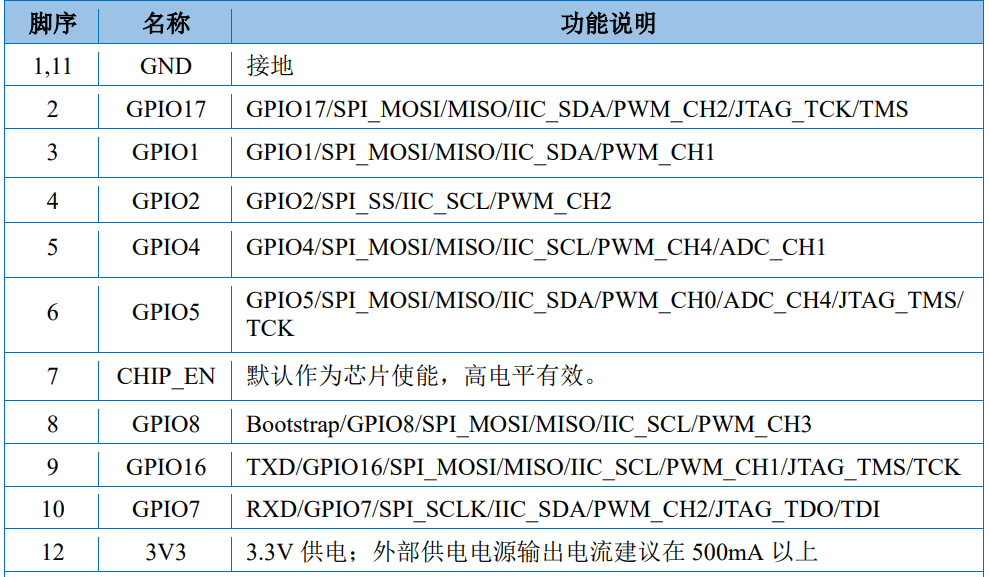

Support interface UART/GPIO/ADC/PWM/I2C/SPI

The available number of I/OS is 8

The default serial port rate is 115200 bps

Security WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3

The default Flash is 4MByte

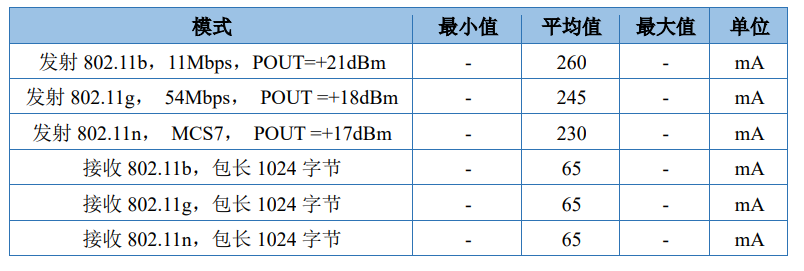

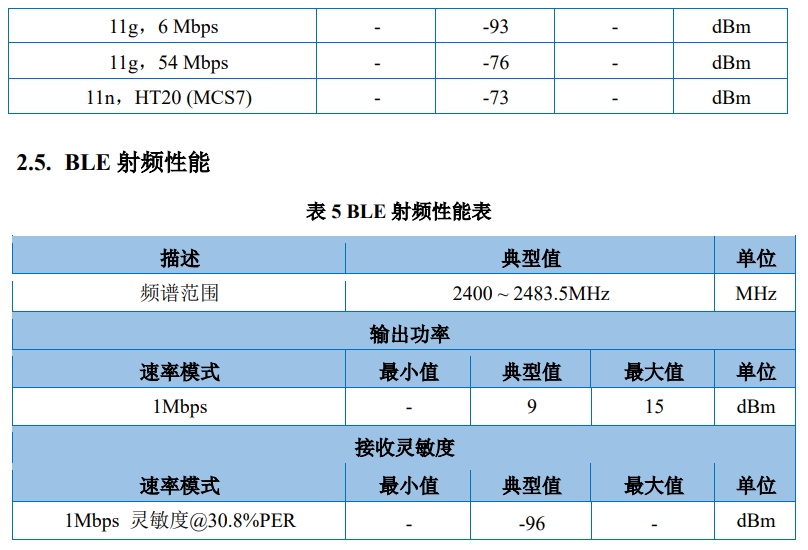

Power consumption

The following power consumption data is based on a 3.3V power supply and an ambient temperature of 25°C

◼ test conditions, all transmission power are completed in the antenna interface

◼ all emission data is based on 100% of the duty ratio, measured in continuous emission mode

Note:

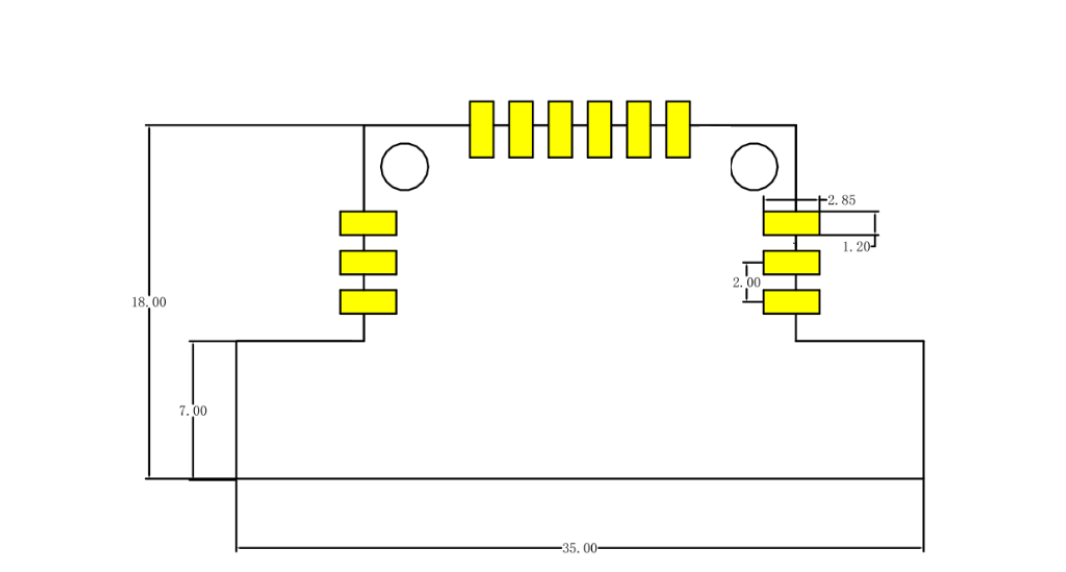

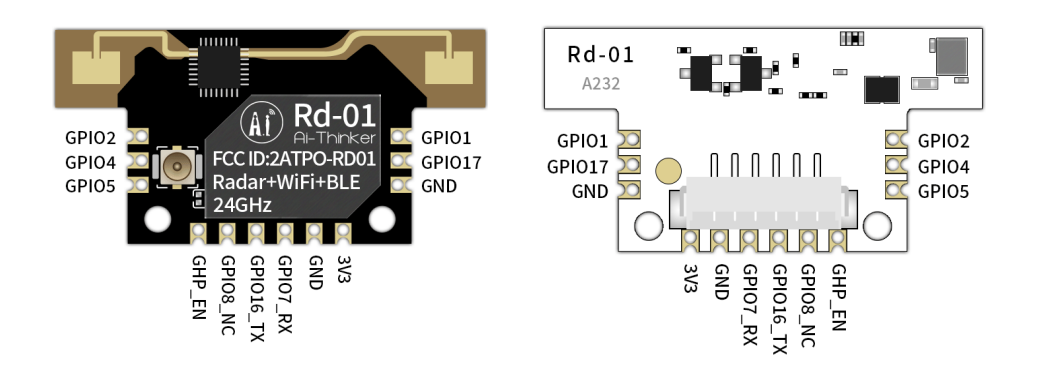

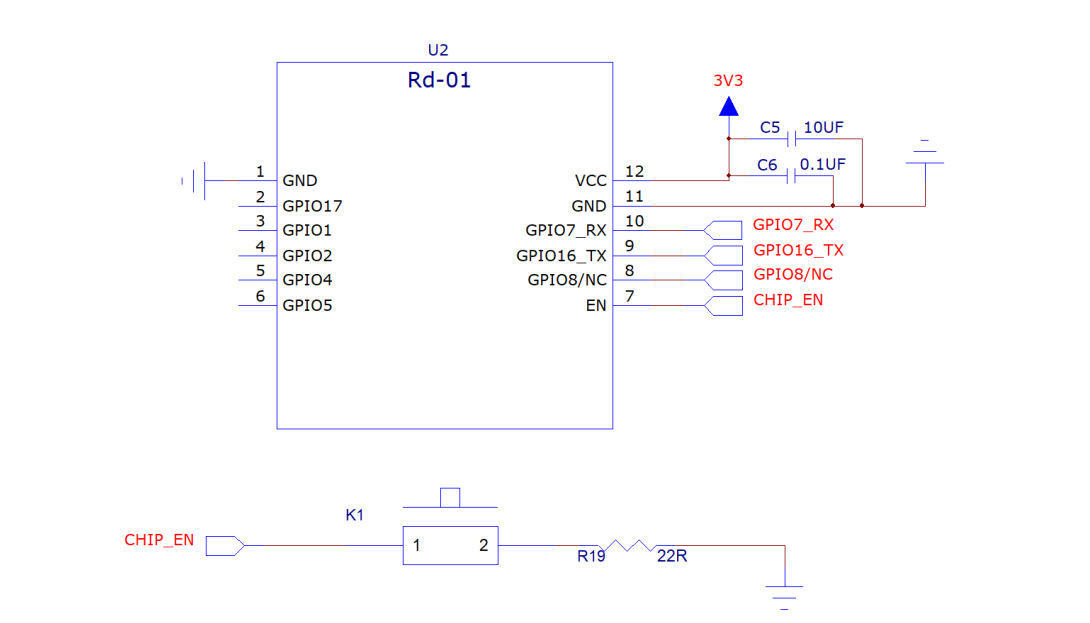

◼ Rd - 01 module compatible with the way of support for multiple interfaces, support the standard 1.25 mm spacing of 6 pin socket interface, support

Standard 2.0mm slot connectors support SMD patch welding with half holes.

◼ if use SMD patch welding way, pay attention to the module in radar antenna back has components to avoid empty.

6.3. Precautions for radar installation

◼ in motherboard installation position, it is recommended that the following several ways:

1. Try to ensure that the radar antenna is facing the area to be detected, and the antenna is open around without occlusion.

2. To ensure that the radar installation position is firm and stable, the shaking of the radar itself will affect the detection effect.

3, to ensure that there will be no movement or vibration on the back of the radar. Because the radar wave is penetrating, the antenna signal back lobe can be

It picks up moving objects on the back of the radar. A metal shield or a metal backplane can be used for the radar back flap

Shielding to reduce the impact of objects behind the radar.

4. The theoretical range accuracy of radar is the result obtained by special algorithm processing on the basis of the physical resolution of 0.75m. Due to

The range accuracy of the target will fluctuate with different size, state and RCS of the target. And the farthest distances fluctuate a little bit.

◼ in order to meet the performance of on-board antenna, the antenna surrounding prohibited, metal pieces, far away from the high frequency components.

6.4. Installation Environment requirements

This product needs to be installed in a suitable environment. If it is used in the following environments, the detection effect will be affected:

◼ induction of continuous movement in the area of nonhuman objects, such as animals, sustained oscillation of the curtain, is the great strain of the outlet

Green plants, etc.

◼ induction area exists the strong reflector of large area, strong reflector is of the radar antenna can cause interference.

◼ hang wall installation, need to consider the top of the indoor air conditioning, electric fan etc. External interference factors.
